WENUS fire-rated doors

Drzwi przeciwpożarowe
Model WENUS EI30

WENUS fire-rated doors deliver an exceptional combination of security and acoustic comfort. They feature an elegant design that seamlessly integrates into diverse interiors, across both residential and public utility sectors. With high-performance acoustic ratings, WENUS doors guarantee peace and quiet by effectively eliminating unwanted external noise. They represent the perfect choice wherever fire protection must be paired with highly effective sound insulation.

WENUS is the ideal door solution for interiors where safety, aesthetics, and comfort must be fulfilled to the highest standard.

Wzory skrzydeł

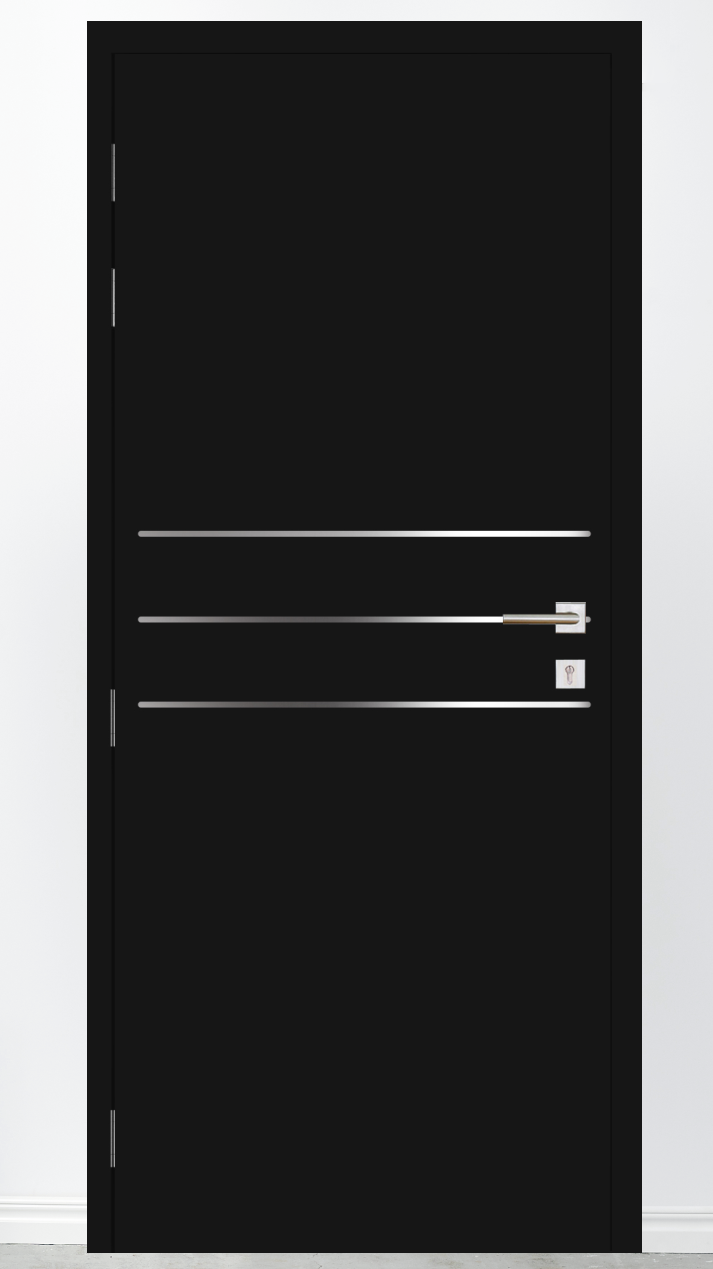

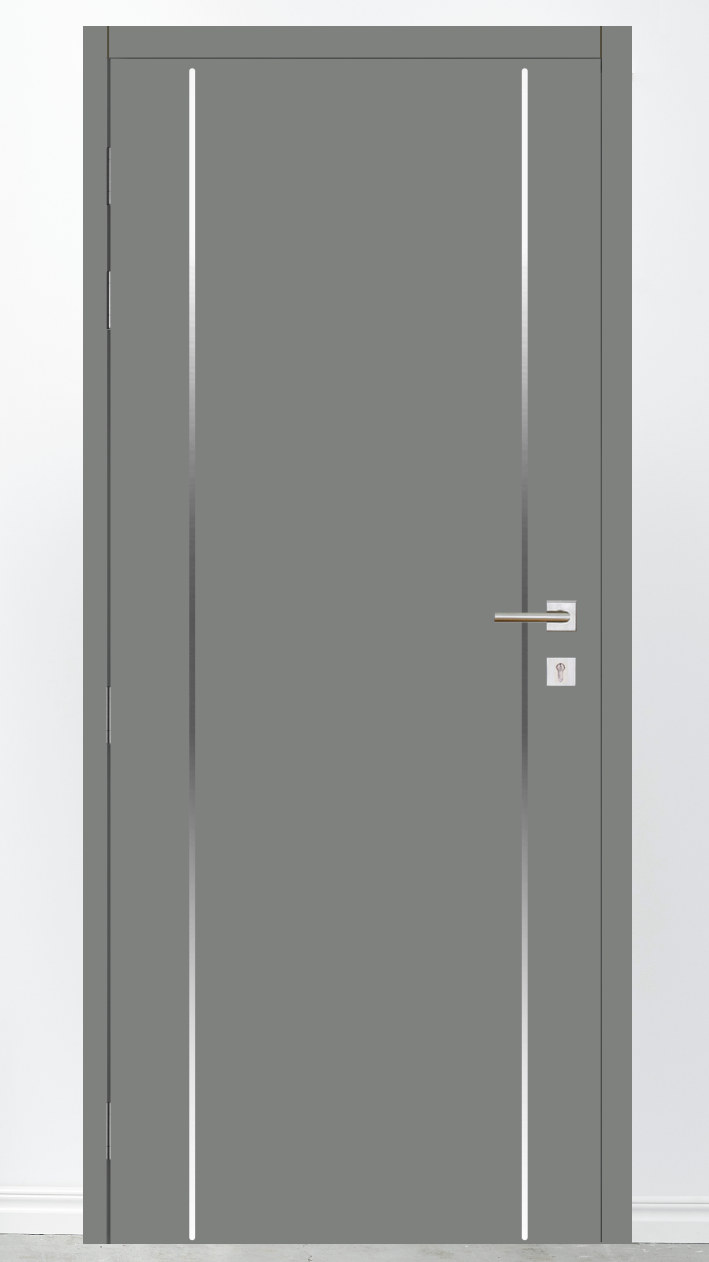

  • WENUS pełne

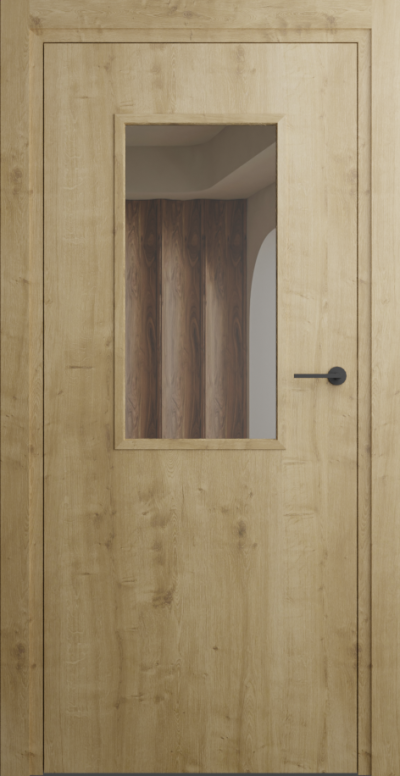

  • WENUS przeszklone

Dostępne kolekcje wykończeń

  • PAINTED
  • NATURE
  • HPL
  • GLOSSA
  • DI MODA

Ciesz się wyborem naszych kolorów

DI MODA prestige

  • caramel oak
  • cognac oak
  • fabric
  • grey oak
  • loft grey

DI MODA standard

  • aluminio
  • amber oak
  • bianco
  • bianco super mat 2
  • burlington oak
  • charlestone oak
  • griza
  • iberia ash
  • nero

GLOSSA

  • black glossa
  • dark grey glossa
  • white glossa

HPL standard

  • HPL concreteart
  • HPL linen
  • HPL rust
  • HPL solid oak

NATURE prestige

  • black forto oak
  • classic oak
  • mokka oak
  • nature oak
  • smoked oak

NATURE standard

  • forto oak
  • jupiter walnut
  • maple flader
  • oak flader
  • solano oak

PAINTED

  • RAL/NCS colours

TECHNICAL SPECIFICATIONS

WENUS is a single-leaf EI30 fire-rated door system, engineered specifically for high acoustic insulation performance. In the flush-rebated solid version, the doors offer an acoustic rating of $Rw = 44\text{ dB}$, while the non-rebated version featuring concealed hinges achieves $Rw = 43\text{ dB}$. The reverse-rebated variant provides $Rw = 42\text{ dB}$, and the glazed configuration delivers rW=WENUS doors are designed for use in residential housing, public utility buildings, collective accommodation facilities, as well as industrial and warehouse sectors. They comply with Class 5 mechanical durability standards and can be installed with a wooden frame. They guarantee long-lasting performance under conditions requiring very heavy-duty operation.
Wenus
WENUS
39 dB/ 42 dB/ 43 dB/ 44 dB
Reverse-rebated version
Optional extended panels available
Optional two-tone finish (different colors on each side)
Optional dual-design configuration (different patterns on each side)
Optional transoms and sidelights available
DIMENSIONS
  • • Single-leaf doors: 80/90/100
from H0 = 1800 mm to H0 = 2300 mm for rebated doors, up to H0 = 2640 mm for non-rebated and reverse-rebated doors
STANDARD EQUIPMENT
Included in the door leaf price
  • • Cylinder lock in chrome finish.
  • • Fire-rated lock covers.
  • • Four pivot hinges in chrome finish (for rebated doors).
  • • Three concealed hinges in chrome finish (for non-rebated and reverse-rebated doors).
  • • Intumescent seals along the vertical and top edges of the door leaf.
  • • Weatherstripping in the frame.
  • • Automatic drop down seal.
  • • Clear fire-rated glass (for glazed versions).
